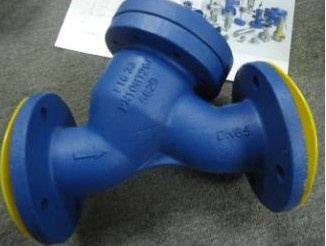

FIG13 Y型过滤器，铸铁材质，法兰连接。标准不锈钢过滤网，DN15至DN80为0.8mm孔径，DN100至DN200为1.6mm孔径。另有其它孔径和数目及合金过滤网可供选择。根据需要过滤器阀帽上可钻螺纹连接排污或排放阀。

斯派莎克Y型过滤器

    英国斯派莎克FIG33过滤器用来确保所有装置免受因管道内杂质、铁锈及焊渣等造成的堵塞和损坏。从而降低了维修费用和生产损失。

过滤器可安装在蒸汽管路、油管、水管及压缩空气系统管路中，保护各种计量仪器、泵机、减压阀、温控阀、蒸汽疏水阀及其它设备。

斯派莎克过滤器

英国斯派莎克FIG33过滤器种类齐全，备有从铸铁，球墨铸铁、铸钢、不锈钢等多种材质的过滤器，口径从15mm至250mm，多种连接规格，可满足各种不同工业应用。

    Fig12/13/14/16Y型过滤器，螺纹连接，材质分别为球墨铸铁、铸铁、铸钢和不锈钢、可用于蒸汽、水及其它流体系统中。

Fig33/34/36/37Y型过滤器，法兰连接，材质分别为铸铁、铸钢、不锈钢和球墨铸钢。

    Fig7篮式过滤器，法兰连接，碳钢材质。本体上可钻孔以安装压力表和排污阀。

过滤网

英国斯派莎克FIG33过滤器的滤网规格齐全，孔径1/64"至3/16''r或40目至200目，同时，根据不同的材料，滤网材质分别有黄铜、不锈钢、蒙乃尔高强度耐蚀镍铜合金等。注意:最好不要安装比需要更细的滤网;建议200目的滤网只用于煤气或空气管路中。

安装

    为防止过滤器中积聚凝结水，成为水锤来源并限制过滤区域，在蒸汽主管内口径大于1"(DN25)的过滤器应水平安装。

FIG13 Y -strainer , cast iron, flange connection. Standard stainless steel filter , DN15 to DN80 is 0.8mm aperture , DN100 to DN200 is 1.6mm aperture . Another pore size and number and other alloys filters to choose from. According to the needs of the filter can be drilled threaded bonnet or sewage discharge valve.

Spirax Sarco filter

    Spirax Sarco filter is used to ensure that all devices from clogging and damage to the pipeline due to impurities such as rust and welding slag caused . Thereby reducing maintenance costs and production losses.

Filters can be installed in the steam piping, tubing, pipes and compressed air system piping and protect a variety of measuring instruments, pumps , valves, valve, steam traps and other devices.

Filter

Spirax Sarco filter range, available from cast iron, ductile iron, steel, stainless steel and other materials filter diameter from 15mm to 250mm, multiple connectivity specifications to meet a variety of industrial applications.

    Fig12/13/14/16Y type filter , threaded connections , materials are ductile iron , cast iron , cast steel and stainless steel , can be used for steam , water and other fluid systems.

Fig33/34/36/37Y type filter , flange connection , materials are cast iron, cast steel , stainless steel and ductile cast .

    Fig7 basket filter , flange , carbon steel . Can be drilled to install a pressure gauge and drain valve on the body .

Filter

Spirax full screen size of the filter pore size of 1/ 64 " to 3/16'' r or 40 mesh to 200 mesh , and , depending on the material , the filter material are of brass, stainless steel, Monel high strength corrosion resistant nickel-copper alloy , etc. Note : It is best not to install a finer mesh than needed ; recommend 200 mesh screen is used only for gas or air line .

Installation

    In order to prevent the accumulation of condensation water filter has become the source of water hammer and limit filtration area in the steam main diameter greater than 1 "(DN25) filter should be installed horizontally .
