DT1811倒置桶式疏水阀
产品名称:DT1811倒置桶式疏水阀
产品型号:DT1811倒置桶式疏水阀
咨询电话:021-51602737
传真:021-51602737
DT315倒置桶式疏水阀
 DT315倒置桶式疏水阀
DT-881型倒置桶式疏水阀
 DT-881型倒置桶式疏水阀
DT300倒置桶式疏水阀
 DT300倒置桶式疏水阀
CS45H钟形浮子倒吊桶式疏水阀
 CS45H钟形浮子倒吊桶式疏水阀
    产品介绍

    DT1811倒置桶式疏水阀DT invered bucket steam trapDT1811倒置桶式疏水阀

    产品介绍:DT1811倒置桶式疏水阀有特殊的杠杆结构,广泛用于造纸、纺织 、食品、石油、化工等工业等加热设备的蒸汽管道。
    结构特点:

    1、结构简单,不易故障。无插销或铰链结构,无固定磨损,节能效果佳。耐磨铬钢阀座,不锈钢结构,使用寿命长。
    2、间歇排放杂质均可冲走,不积污垢,自动排空气。
    3、有多种节流孔选择,在不同压力下,可达到最高排水流量。
    4、内部零件全安装在阀盖上,维修方便。
    Ntroduction:DT inverted trap has special lever structure,extensively applied in industries of petroleum,textile,foods,paper making,chemical
    Industry and steam pipelines
    Structure:1,Simple structure.No gemel structure,no fixed abrasive ,excellent abilities to save energy.Valve baseis made of crome steel,with long service life.
    2.The waste are discharged constantly will be washed away,no dirty remained ,and the air will be automatically discharged.
    3.There are many kinds of throttle holes.Under different pressure,It can always realiys realize largest amount discharged.
    4.The parts are all fixed on the valve cover facilitate maintence.

    DT1811倒置桶式疏水阀 主要零件材料和性参数 Main parts and specifcations

    主要零部件材料表
    Main parts materials

    Parts
    零部件名称

    Materals
    材料

    Body/Bonnet
    阀体、阀盖

    CF8、WCB

    Valve seat/valve core
    阀座、阀芯

    Tungsten chromium cobalt alloy
    钨铬钴合金

    Crane bucket
    吊桶

    Stainless Steel
    不锈钢

    Support/Filters
    支架、过滤网

    Stainless Steel
    不锈钢

    DT1811倒置桶式疏水阀 技术参数表 Technological parameter date

    Model
    产品型号

    Nominal Diameter
    公称通径(DN)

    Connection
    连接方式

    Pressure Rating
    使用压力

    Max allowable(℃)
    最高允许温度

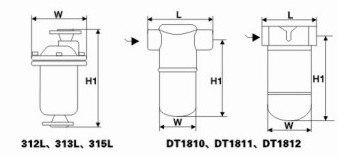

    Exterma dimensions(mm)外型尺寸

    L

    H1

    H2

    W

    DT312-L
    DT313-L
    DT315-L

    15~25

    Flange法兰
    Thread螺纹



    0.01~5.0



    425



    305



    170

    15~25



    345



    210

    25~50



    475



    240

    DT415-L
    DT421

    25~50

    Flange法兰

    0.1~15.0

    550



    495



    245

    15~25

    310

    115

    165

    210

    DT1811
    DT1811
    DT1822

    10~15

    Flange法兰
    Thread螺纹



    0.1~4.0



    425

    110

    145



    73

    15~25

    110

    166



    73

    20~20

    120

    230



    108

    DT1010
    DT1013

    15~20

    Flange法兰
    Thread螺纹

    0.01~4.0

    425



    185



    73

    20~25



    295



    114

    DT1811倒置桶式疏水阀 订货须知

    订货时请填写《规格书》或注明以下内容:
    1、若订货前未选定型号,请向我们提供使用参数:1.公称通径,2.流体性质(包括公称压力、温度、粘度或酸碱性),3.阀体、阀芯材料。
    2、若已经由设计单位选定我公司的蒸汽疏水阀型号,请按型号直接向我司经营部订购;
    3、当使用的场合非常重要或管路比较复杂时,请您尽量提供设计图纸和详细参数,由我们的专家为您审核把关。
